Queue Rate per Project

Queue Rate per Project is a key performance indicator that shows ratio of completed tasks in a project relative to the number of uncompleted tasks within the same time period. The formula looks like this:

Queue Rate = Number of Completed Project Tasks /Number of Uncompleted Project Tasks

The ratio greater than 1 indicates good performance. If the ratio is less than 1, the number of project tasks in the backlog increases.

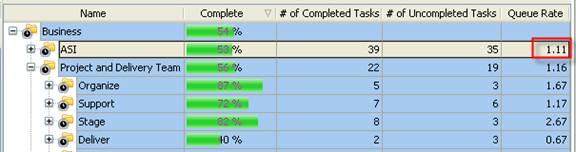

Consider total number of completed and approved tasks in a project task group is 39 and the total number of uncompleted tasks in the same project task group is 35, Queue Rate is calculated as

Queue rate = 39/35 = 1.11

To define Queue Rate per Project please follow the instructions below:

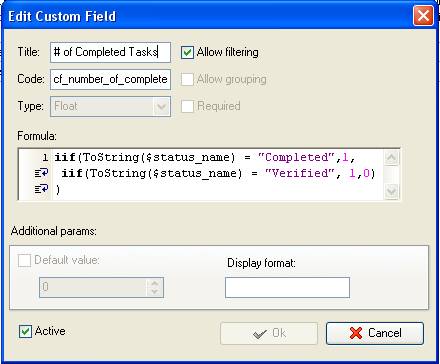

  • Add custom field “# of Completed Tasks” with Code “cf_number_of_completed”, Type “Float” and the formula:

iif(ToString($status_name) = "Completed",1, iif(ToString($status_name) = "Verified", 1,0))

Queue Rate per Project

If you use the formula above, task is considered completed if it is marked with status either “Completed” or “Verified”.

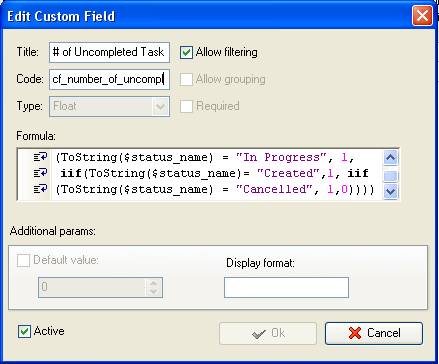

  • Add custom field “# of Uncompleted Tasks” with Code “cf_number_of_completed”, Type “Float” and the formula:

iif(ToString($status_name) = "Draft", 1, iif(ToString($status_name) = "In Progress", 1, iif(ToString($status_name)= "Created",1, iif(ToString($status_name) = "Cancelled", 1,0))))

Queue Rate per Project

If you use the formula above, task is considered uncompleted if it has one of the following statuses: “Draft”, “In Progress”, “Created” or “Cancelled”.

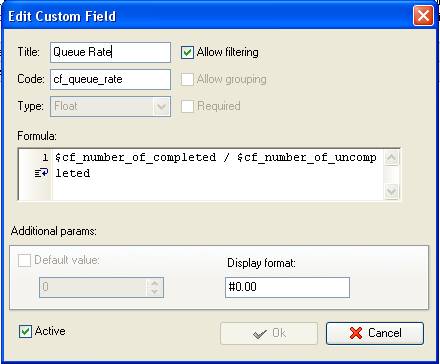

  • Add custom field “Queue Rate” with the formula:

$cf_number_of_completed / $cf_number_of_uncompleted

Queue Rate per Project

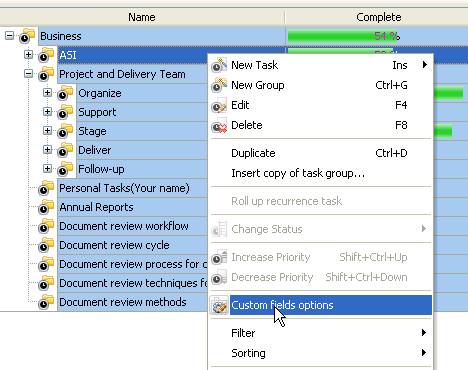

  • On Task Tree select task group for which you need to display Queue Rate and select “Custom fields options”

Queue Rate per Project

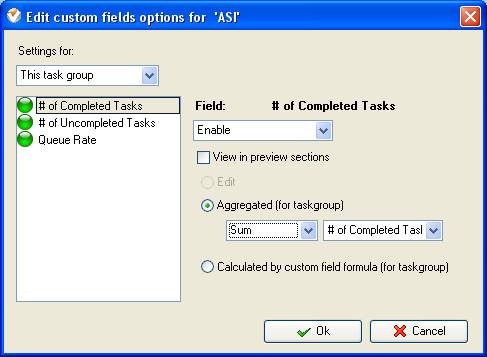

  • Set the following custom fields settings for the custom fields “# of Completed Tasks” and “# of Uncompleted Tasks”

- In “Settings for” select “This task group”
- select “Enable”
- in “Aggregated (for task group)” field select “Sum” from drop-down list and the corresponding custom field name:

Queue Rate per Project

Queue Rate per Project

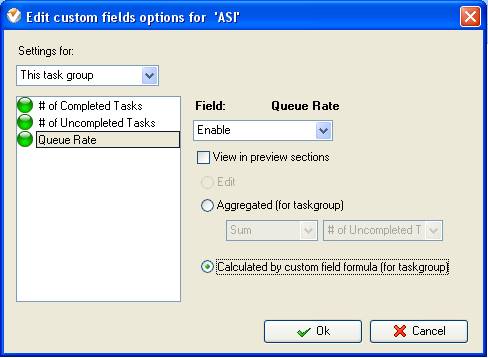

  • Select custom field “Queue Rate” and select set the following settings - In “Settings for” select “This task group”

- select “Enable”
- select “Calculated by custom field formula (for task group)”

Queue Rate per Project

If you would like to display Queue Rate for all project groups, please follow the instructions below:

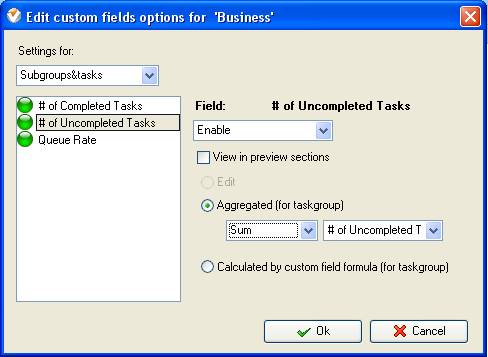

  • Select parent task group and set the following options for the custom fields “# of Completed Tasks”
    and “# of Uncompleted Tasks”
  • In “Settings for” select “Subgroups&tasks”
  • select “Enable”
  • in "Aggregated (for task group)" field select "Sum" for the custom fields "# of Completed Tasks"
    and "# of Uncompleted Tasks"

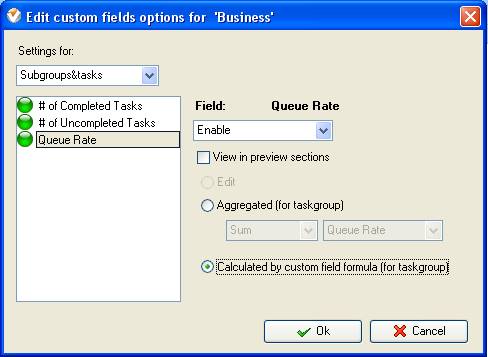

  • for the custom field "Queue Rate" select "Calculated by custom field formula (for task group)"

Queue Rate per Project

Queue Rate per Project

Queue Rate per Project

Queue Rate per Project

Queue Rate per Project Group on Task Tree
