It is possible to use the following task statuses in VIP Task Manager Professional:
- Inactivated
Task status "Inactivated" shows the task was added to Task List/Task Tree of VIP Task Manager Professional.
- Runnable
Task status "Runnable" notifies that the assigned resource is executing the task.
- Sleep
Task status
"Sleep" means that the task is blocked and is waiting for some event to resume
the task. in some cases it can be caused by required time delays.
- Terminated
Task status
"Terminated" renders successful task execution.
![Custom Workflow 45](/images/tutorial/custom-workflow-453.jpg)

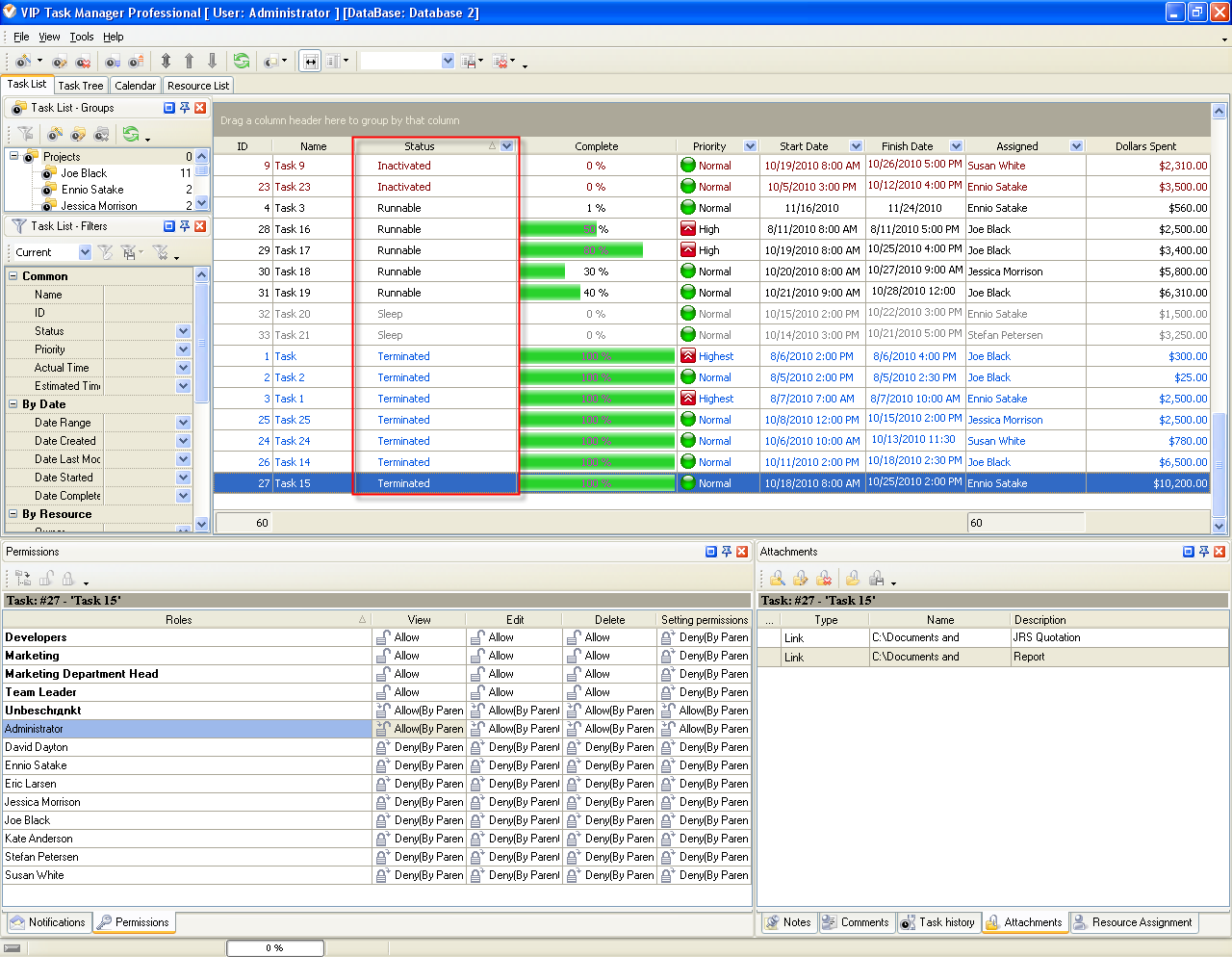

Task statuses of
Custom Workflow 45 on Task List
To create
custom workflow using the statuses described above, please follow the steps
below:

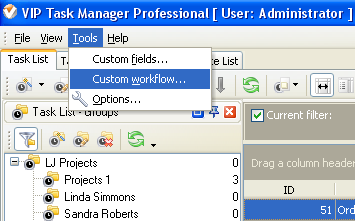

- Go to: Tools/Custom workflow
![Custom Workflow 45](/images/tutorial/custom-workflow-454.png)

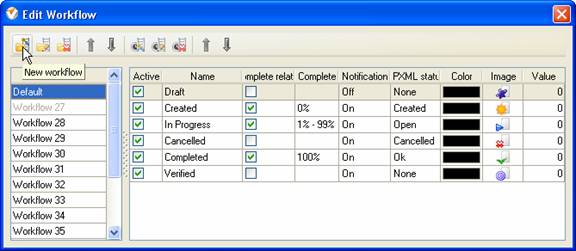

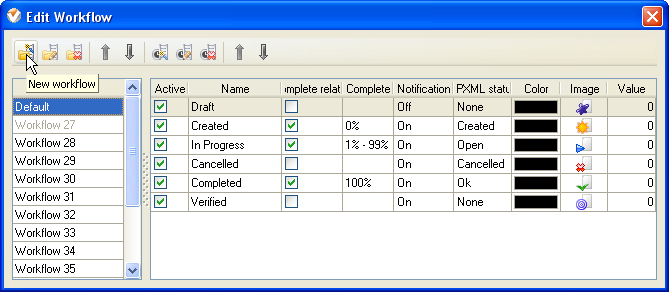

- Click "New Workflow" button.
![Custom Workflow 45](/images/tutorial/custom-workflow-457.jpg)

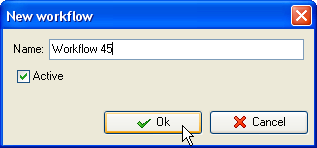

- In Name field enter custom
field name, for example, "Workflow 45".
![Custom Workflow 45](/images/tutorial/custom-workflow-458.png)

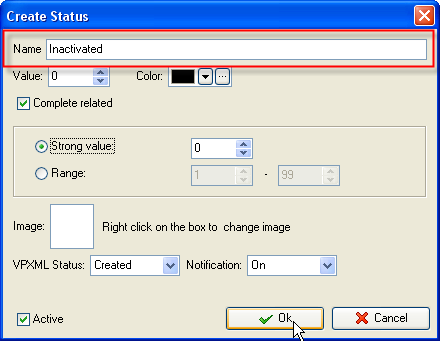

- Click "Ins" button, enter the
status name "Inactivated" in Name field and click "Ok" button.
![Custom Workflow 45](/images/tutorial/custom-workflow-4510.png)

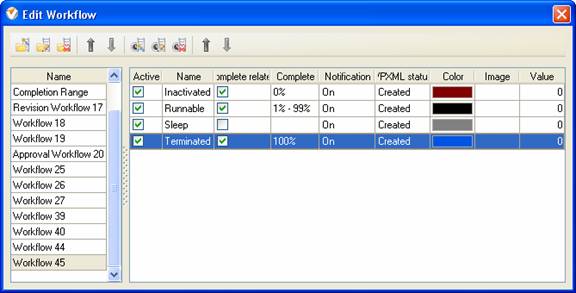

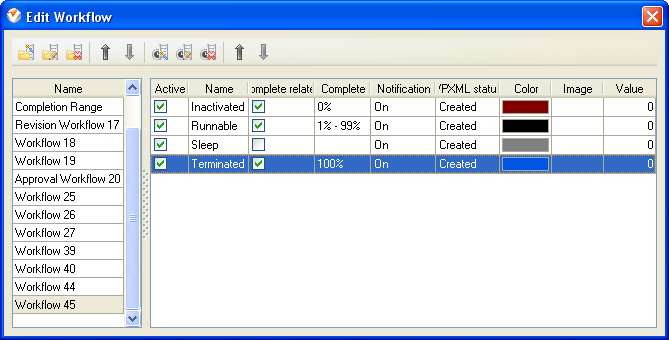

- Add other statuses: "Runnable",
"Sleep" and "Terminated".
![Custom Workflow 45](/images/tutorial/custom-workflow-4513.jpg)
