Custom Workflow 38: Running Ready Suspended Terminated
Tasks can occupy the following statuses:
- Ready
Recently created tasks that are pending for further actions can occupy the status "Ready".
- Running
Task status "Running" shows that the task is in the process of completion.
- Suspended
Task status "Suspended" shows that the task is waiting for some event to proceed further.
- Terminated
Task status"Terminated" notifies that the delegated resource successfully coped with thetask.
![Custom Workflow 38](/images/tutorial/custom-workflow-383.jpg)

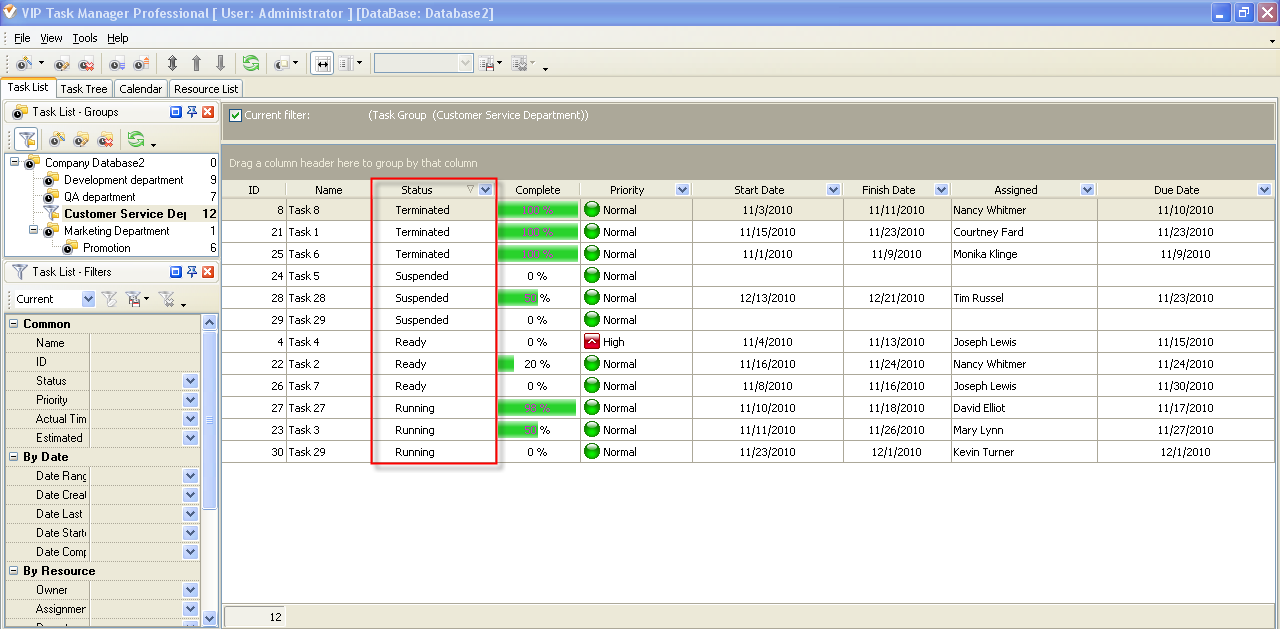

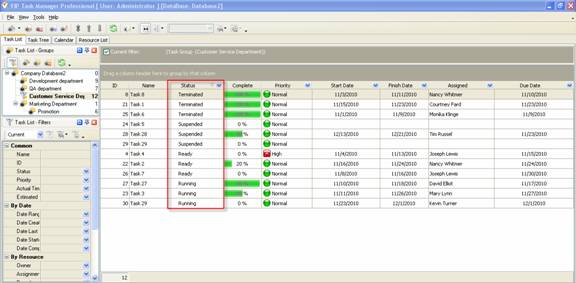

Task statuses of Custom Workflow 37 on Task List
To create custom workflow using the statuses described above, please follow the steps below:

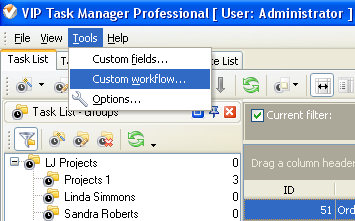

- Go to: Tools/Custom workflow
![Custom Workflow 38](/images/tutorial/custom-workflow-384.png)

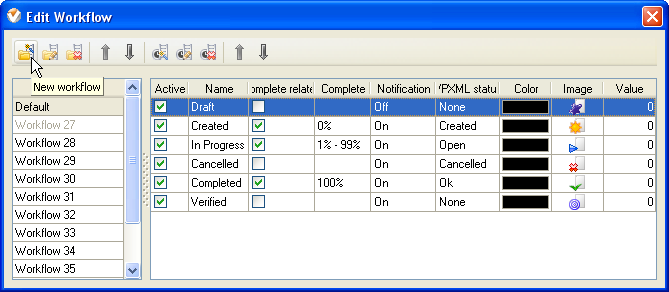

- Click "New Workflow" button.
![Custom Workflow 38](/images/tutorial/custom-workflow-387.jpg)

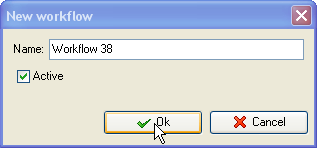

- In Name field enter custom
field name, for example, "Workflow 38".
![Custom Workflow 38](/images/tutorial/custom-workflow-388.png)

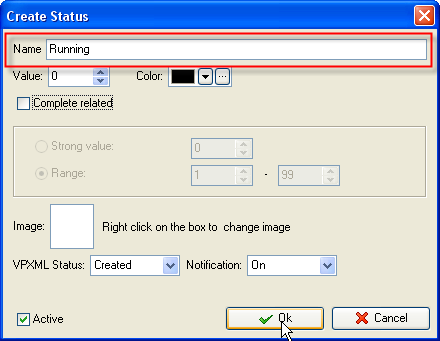

- Click "Ins" button, enter the
status name "Running" in Name field and click "Ok" button.
![Custom Workflow 38](/images/tutorial/custom-workflow-3810.png)

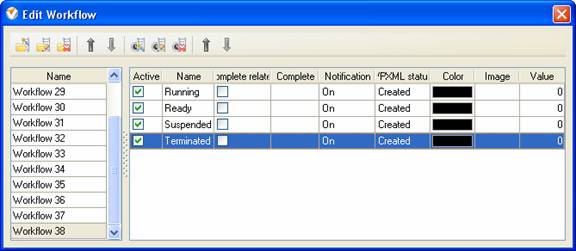

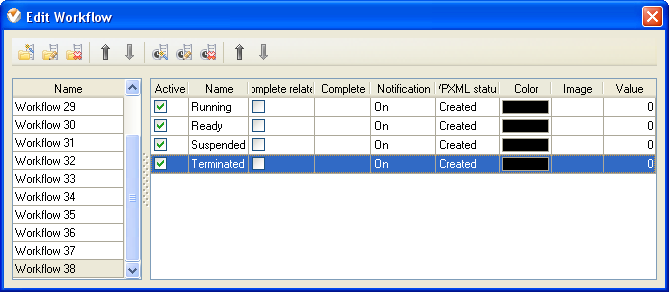

- Add other statuses: "Ready", "Suspended"
and "Terminated".
![Custom Workflow 38](/images/tutorial/custom-workflow-3813.jpg)
