Custom Workflow 35: Pending – Started – Success – Failure – Retry – Revoked
This
workflow includes the following statuses:
-
Pending
Task with
task status "Pending" shows that the task is waiting for further action or its
status is undefined.
-
Started
Tasks
status "Started" means that the delegated resource started to work on the task.
-
Failure
Task status
"Failure" means that the task was completed with some errors.
-
Retry
If there is
a possibility to review and re-do the work on the task, you can change its
status from "Failure" to "Retry".
-
Revoked
Task Status "Revoked" renders the task cancellation.
-
Success
Task Status
"Success" notifies that the task was successfully executed.
![Custom Workflow 35](/images/tutorial/custom-workflow-353.jpg)

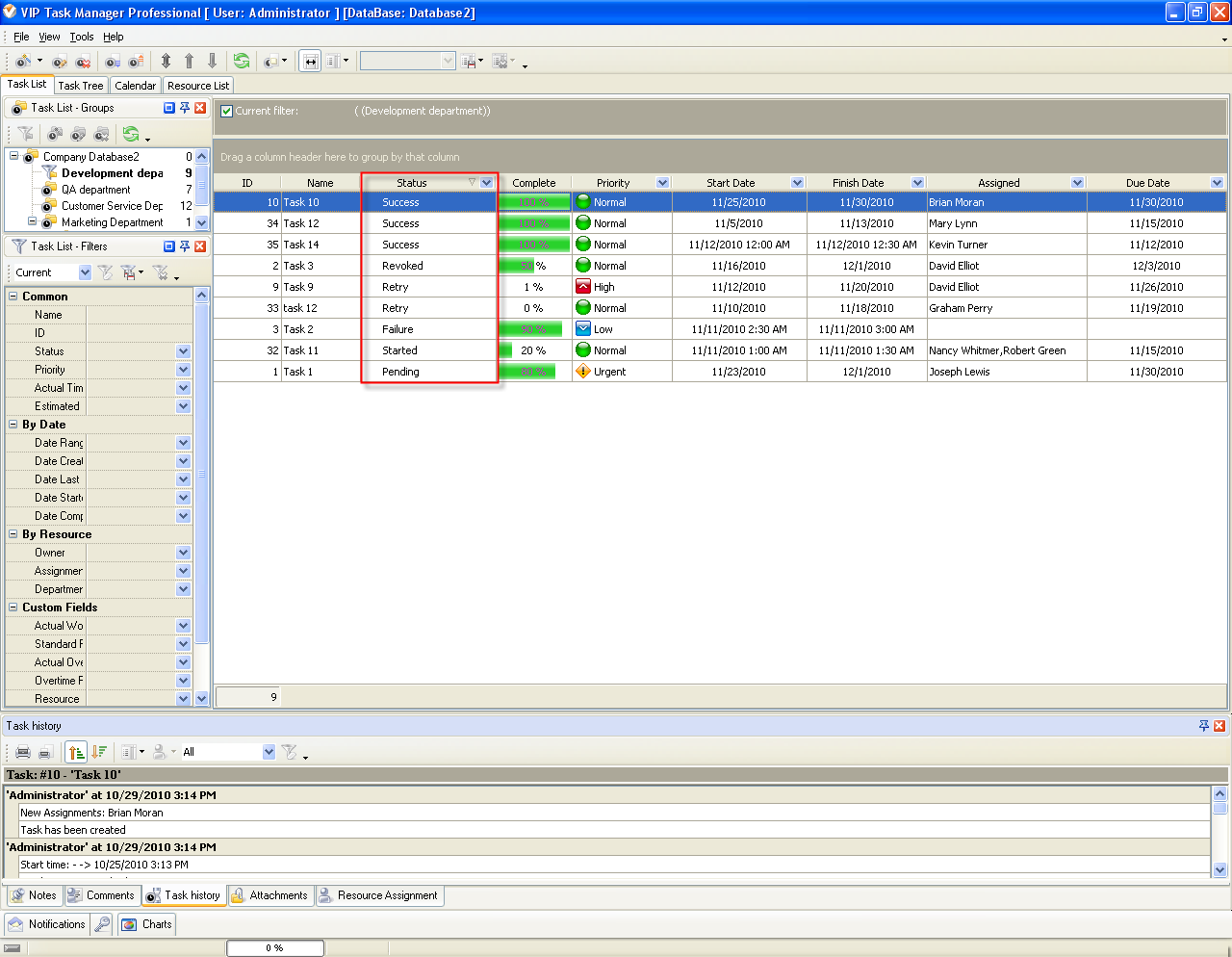

Task statuses of
Custom Workflow 35 on Task List
To create
custom workflow using the statuses described above, please follow the steps
below:

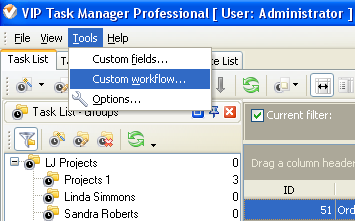

- Go to: Tools/Custom workflow
![Custom Workflow 35](/images/tutorial/custom-workflow-354.png)

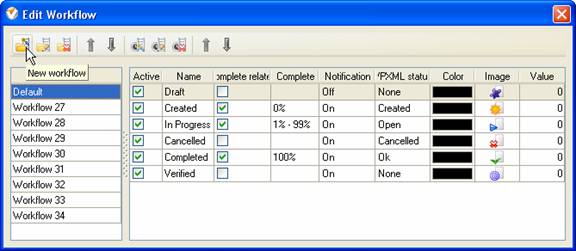

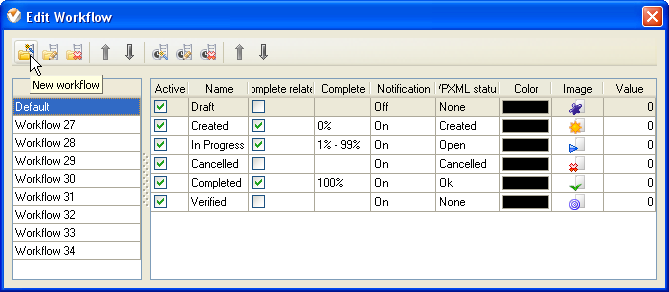

- Click "New Workflow" button.
![Custom Workflow 35](/images/tutorial/custom-workflow-357.jpg)

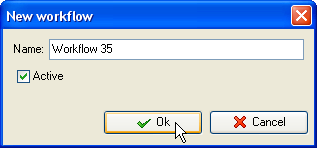

- In Name field enter custom
field name, for example, "Workflow 35".
![Custom Workflow 35](/images/tutorial/custom-workflow-358.png)

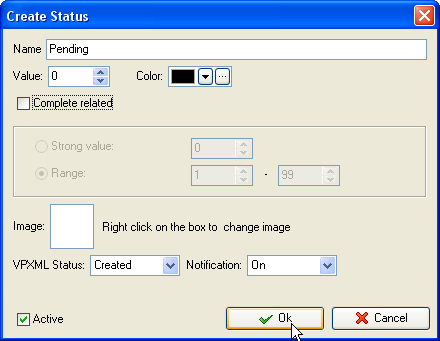

- Click "Ins" button, enter the
status name "Pending" in Name field and click "Ok" button.
![Custom Workflow 35](/images/tutorial/custom-workflow-3510.png)

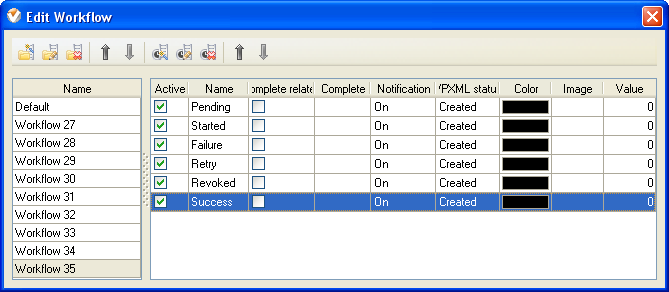

- Add other statuses: "Started",
"Failure", "Retry" "Revoked" and "Success",
![Custom Workflow 35](/images/tutorial/custom-workflow-3513.jpg)
