User Interface - Task History panel

Task History panel displays changes of the task and its properties

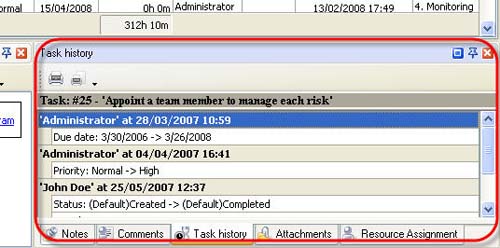

By default Task History panel is located at the right bottom part of application window.

Tips:

• To display or hide Task History panel use main menu command [View -> Panels -> Task history].

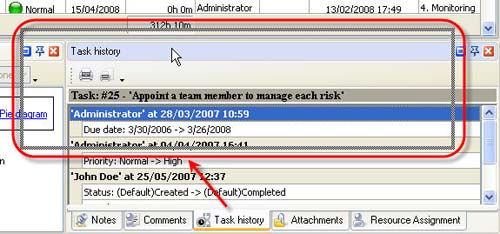

• To move Task History panel drag it and drop where you need. There must be a gray frame that shows panel's future location while dragging it

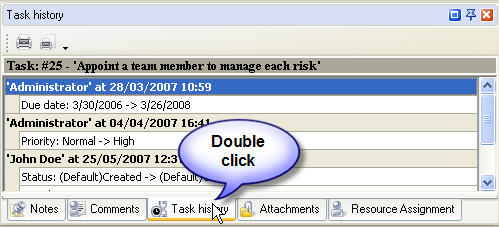

• To take Task History panel out its default location double click on its tab.

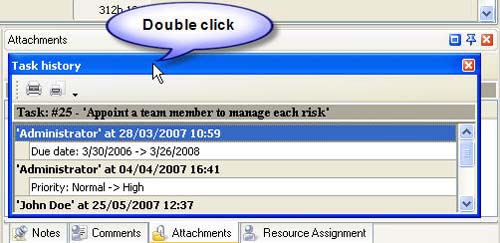

To return Task History panel to its default location double click on its title.

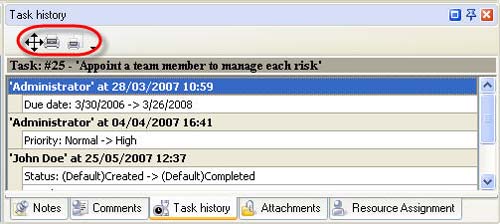

Task History Toolbar

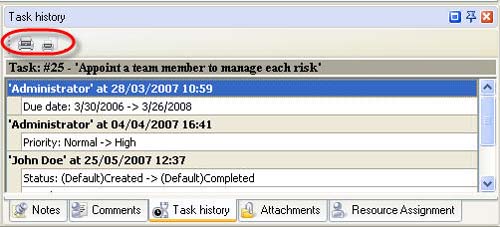

By default Task History toolbar is located at the left top part of Task History panel.

The following table describes each of the Task History Toolbar buttons.

Tips:

• To display or hide Task History Toolbar use main menu command [View -> Toolbars -> Task history].

• To move Task History Toolbar move mouse cursor to its left border, left click on it while cursor has its ‘crosshair’ status, drag and drop it wherever you need.

• To take Task History Toolbar out its default location and vice versa double click on it.

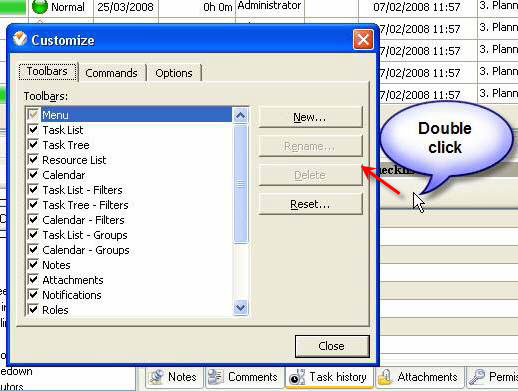

• Double click on the space near Task History panel’s toolbar allows managing toolbars, commands and program options via Customize window

• To close the panel click on button at its right bottom corner
• To make the panel auto-hidden click on button at its right bottom corner
• To maximize the panel click on button at its right bottom corner
• To return the panel to its default position click on corresponding button again
