User Interface - Resource Assignment panel

Resource Assignment panel features tools for creating, editing and deleting resources and assigning them to tasks

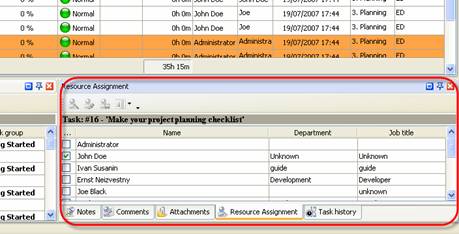

By default Resource Assignment panel is located at the right bottom part of application window.

Tips:

• To display or hide Resource Assignment panel use main menu command [View -> Panels -> Resource Assignment].

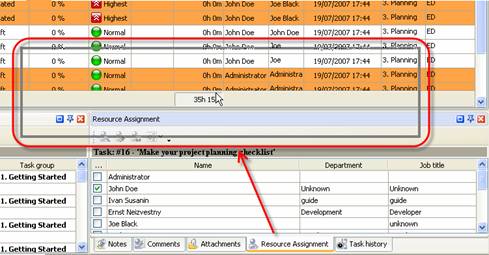

• To move Resource Assignment panel drag it and drop where you need. There must a be gray frame that shows panel's future location while dragging it

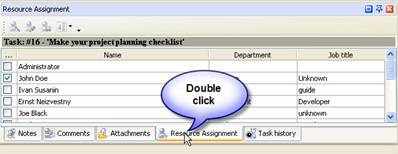

• To take Resource Assignment panel out its default location double click on its tab.

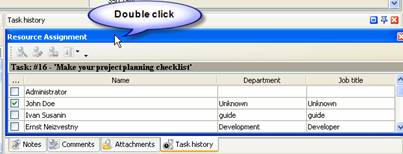

To return Resource Assignment panel to its default location double click on its title

Resource Assignment Toolbar

By default Resource Assignment toolbar is located at left top part of Resource Assignment panel.

The following table describes each of the Resource Assignment Toolbar buttons.

Tips:

• To display or hide Resource Assignment Toolbar use main menu command [View -> Toolbars -> Resource Assignment].

• To move Resource Assignment Toolbar move mouse cursor to its left border, left click on it while cursor has its 'crosshair' status, drag and drop it wherever you need.

• To take Resource Assignment Toolbar out its default location and vice versa double click on it.

Resource Assignment grid

Left click on column header allows to sort resources by selected column in ascending or descending order

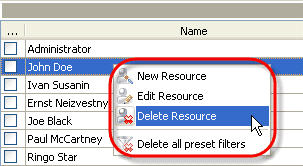

Right click on Resource Assignment grid allows to carry out following operations

Create a new resource Edit selected resource Delete selected resource Delete all preset filters (is available only for administrator)

By dragging columns header border you can change columns' width.

Tips:

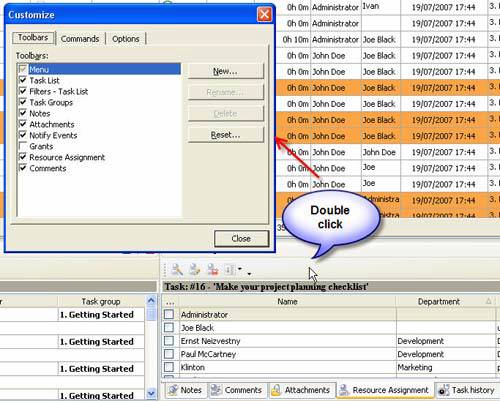

• Double click on the space near Resource Assignment panel's toolbar allows managing toolbars, commands and program options via Customize window
