User Interface - Filters Panel

Filters panel features tools for filtering tasks by their properties on Task List grid.

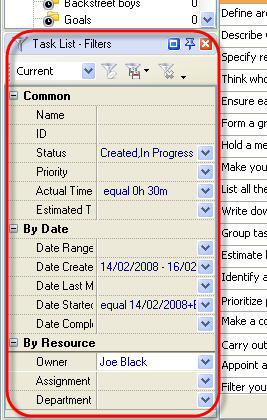

By default Filters panel is located in the left part of views.

Tips:

• To display or hide Filters panel use main menu command [View -> Panels -> Task List - Filters].

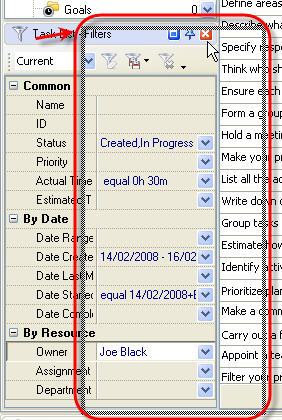

• To move Filters panel drag it and drop where you need. There must be gray frame that shows panel's future location while dragging it

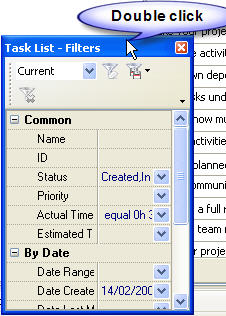

• To take Filters panel out its default location and vice versa double click on its title.

Filters Toolbar

By default Filters toolbar is located at the top part of Filters panel.

The following table describes each of the Filters Toolbar buttons.

Tips:

• To display or hide Filters Toolbar use main menu command [View -> Toolbars ->Task List - Filters].

• To move Filters Toolbar move mouse cursor to its left border, left click on it while cursor has its 'crosshair' status, drag and drop it wherever you need.

• To take Filters Toolbar out its default location and vice versa double click on it.

Filters Fields

Right click on Filter fields allows to carry out following operations

Select and apply existing filter to Task List grid Apply new filter to Task List grid Set automatic applying filter Clear current filter Delete current filter Save current filter

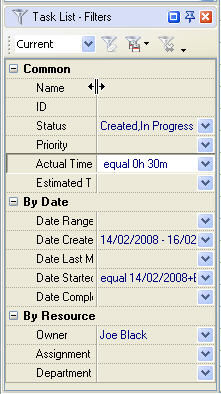

By dragging columns header border you can change columns' width.

Tips:

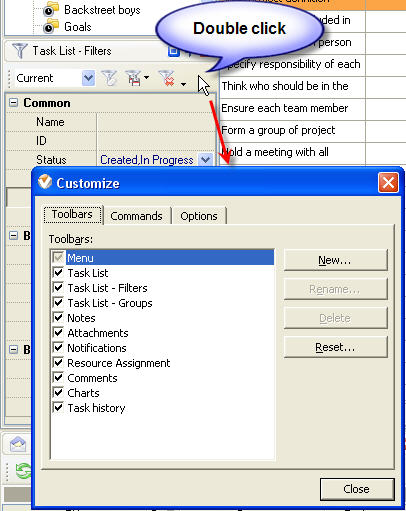

• Double click on the space near Filter panel's toolbar allows managing toolbars, commands and program options via Customize window

• To close the panel click on button at its right bottom corner
• To make the panel auto-hidden click on button at its right bottom corner
• To maximize the panel click on button at its right bottom corner
• To return the panel to its default position click on corresponding button again
