User Interface - Comments panel

Comments panel features tools for adding comments to task

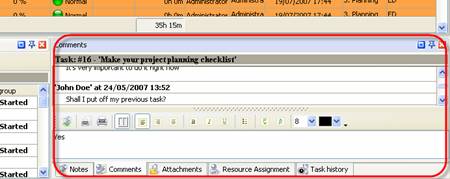

By default Comments panel is located at the right bottom part of application window.

Tips:

• To activate Comments panel select required task and press ‘Ctrl + Alt + C’ hot keys
• To display or hide Comments panel use main menu command [View -> Panels -> Comments].

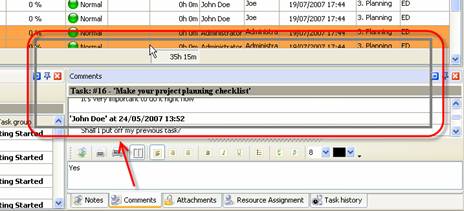

• To move Comments panel drag it and drop where you need. There must be a gray frame that shows panel's future location while dragging it

• To take Comments panel out its default location double click on its tab.

To return Comments panel to its default location double click on its title

Comments Toolbar

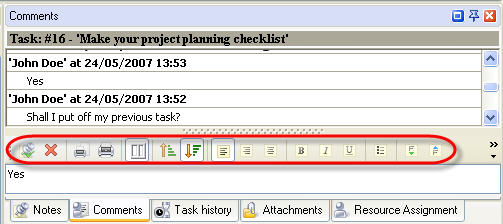

By default Comments toolbar is located in the middle of Comments panel above the comments entry field.

The following table describes each of the Comments Toolbar buttons.

Tips:

• To display or hide Comments Toolbar use main menu command [View -> Toolbars -> Comments].

• To move Comments Toolbar move mouse cursor to its left border, left click on it while cursor has its 'crosshair' status, drag and drop it wherever you need.

• To take Comments Toolbar out its default location and vice versa double click on it.

Comments grid

Right click on Comments grid allows to carry out following operations

Copy all comments Print out Comments grid contents Preview Comments grid contents , create and edit your own print design

Comments entry field

Right click on Comments entry field allows to carry out following operations

• Undo last operation
• Redo last operation
• Cut selected text
• Copy selected text
• Paste selected text in required place of Notes grid
• Delete selected text
• Select all text

Tips:

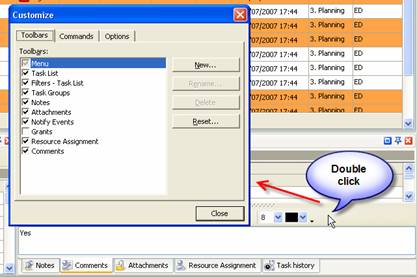

• Double click on the space near Comments panel's toolbar allows managing toolbars, commands and program options via Customize window

• Double click on Comments splitter allows to display or hide comments entry field

• To close the panel click on button at its right bottom corner
• To make the panel auto-hidden click on button at its right bottom corner
• To maximize the panel click on button at its right bottom corner
• To return the panel to its default position click on corresponding button again
